Capture Hook - The Best Unmanned Hook Solution

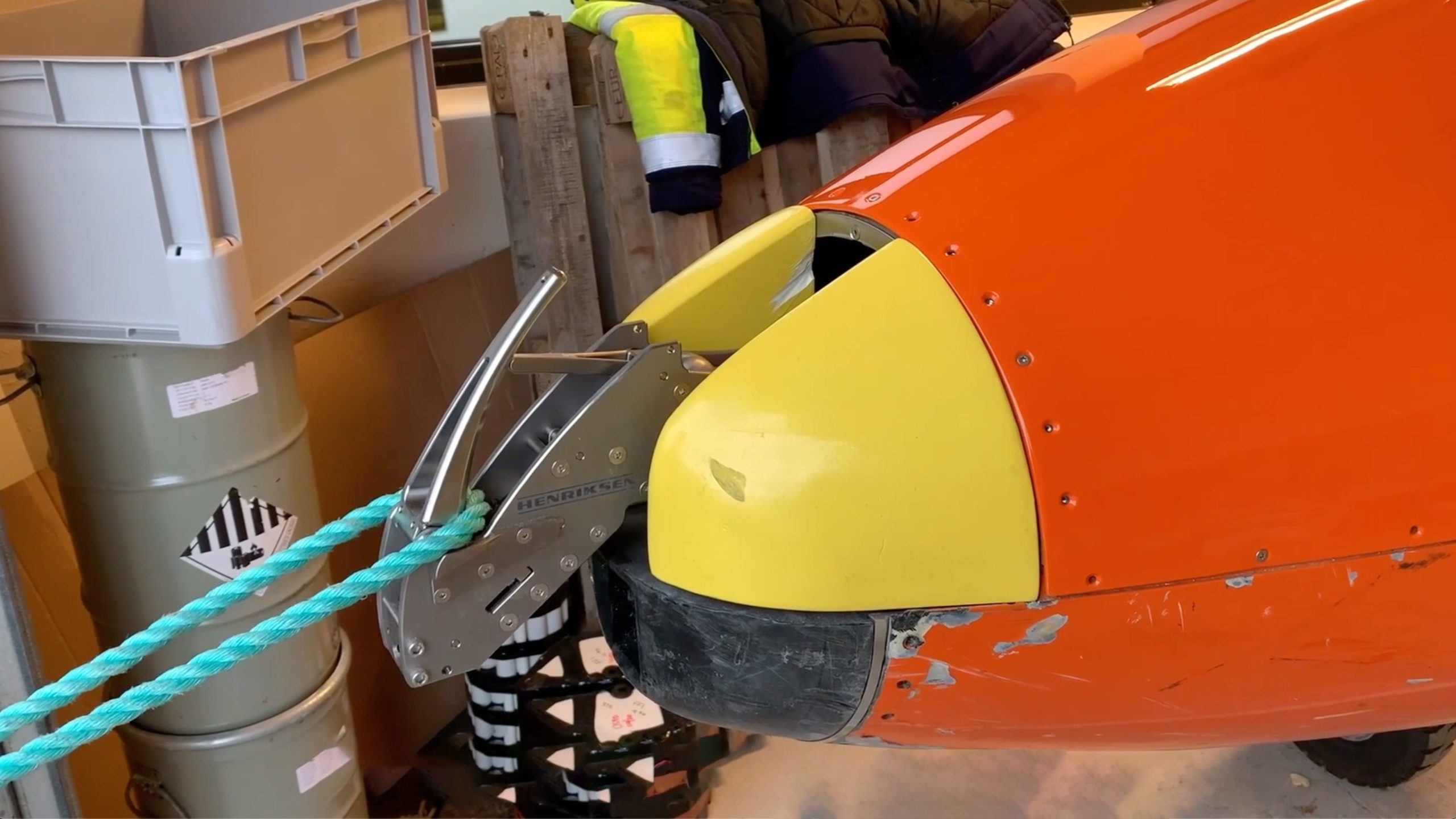

When planning to use the Stinger to Launch and Recover AUVs, incorporating a Capture Hook into the AUV offers a seamless operation. This AUV controlled hook can easily be fitted into the nose of the AUV. During the launch operations the Stinger is extended over the stern of the boat while the AUV stays safely put on the Stinger. The Stinger is then tilted to position its end just under water. The operator can release the AUV using a radio link that releases the hook and thus the retaining line. This enables the AUV to slide down the Stinger and into the water, and then start to work.

The deployment boat will capture the AUV with its Stinger extended into the water. The USV/boat is maneuvered so that the nose of the AUV moves onto the Stinger bed where the hook on its nose automatically captures a self-tensioned winch line. The winch is used to pull the AUV out of the water and up onto the Stinger bed. The Stinger is then raised bringing the AUV onboard where it is kept still and transported to the mothership by the USV. When the launch boat is alongside the ship, the ship’s davit is then used in conjunction with a fitted Henriksen Dual Point Lifting Hook so that it can be hoisted back onto the ship along with its Launch and Recovery system, and the AUV.
